Launching GTK

This is probably the simplest part of this article: launching GTK in its own thread, thus leaving our main thread available for implementing our own personalized main loop:

import gtk
import thread

gtk.gdk.threads_init()
thread.start_new_thread(gtk.main, ())

# Yes, it really is that easy.  GTK is now running in its own thread,
# waiting for us to send messages to it.

Continue by reading the "Message Passing" section to see what to do next.

Introduction

Message passing is the means by which processes communicate. Much like humans communicate by talking to each other or writing notes to each other, so do computer programs communicate with each other. Sockets and pipes are prime examples of message passing technologies. Shared memory can also be used for message passing.

Programming with functions or objects is also a form of message passing. In this case, calling a function or method is equivalent to sending a message to your program or to an object in your program. Essentially, your program is communicating with itself. But that's still message passing. Just like how people sometimes like to talk to themselves (well, at least I do).

Some programming language libraries have special queues that can be used to pass messages between threads in a multithreaded application. Some languages, like Erlang or Termite Scheme, have message passing so ingrained that you'd be crazy not to use those features.

Message Passing with GTK

Here I am going to explain message passing between GTK and your custom main loop. I am not explaining message passing inside GTK (e.g. between GTK widgets - you'll have to read the GTK docs for more info about that).

GTK has a so-called "idle loop." This idle loop is how you can interface with GTK's main loop. GTK has a special function called "idle_add" which lets us add messages to be processed in the idle loop. I am going to describe two types of messages here:

1. Asynchronous messages

   These are messages that you insert into GTK's idle loop, but you do not care about getting a response.

2. Synchronous messages:

   These are messages that you insert into GTK's idle loop, but you do care about getting a response.

In the Python programming language, functions are first-class citizens that can be passed around just like normal data. Thus, a message really is just a function reference (or a functor) that we inject into GTK's idle loop. GTK's idle loop will merely call/execute the function. In C, this is similar to putting a function pointer into a queue which another loop dequeues and then calls the function associated with that function pointer.

import gobject

# This is a function which takes a function as an argument and
# returns yet another function (this is what higher order functions
# are all about!).  (Side note: this can be invoked/applied with
# Python's decorator syntax, '@', if you so desire.):
def asynchronous_gtk_message(fun):

    def worker((function, args, kwargs)):
        # Apply is a function that takes a function as its first
        # argument and calls it with positional argument taken
        # from "args" and keyword arguments taken from "kwargs":
        apply(function, args, kwargs)

    # This is a special type of function known as a "closure"
    # (although it is not quite as advanced as a closure in Lisp
    # or Ruby.  Challenge question: do you know why?).  In C++,
    # a class-based functor which defines operator() (or Boost.Lambda)
    # is the closest you can get to a closure:
    def fun2(*args, **kwargs):
        # "worker" is none other than the function just defined
        # above (with "def worker"):
        gobject.idle_add(worker, (fun, args, kwargs))

    # Here, the closure is returned and must be called at some later
    # point in the program:
    return fun2

import gobject

def asynchronous_gtk_message(fun):

    def worker((function, args, kwargs)):
        apply(function, args, kwargs)

    def fun2(*args, **kwargs):
        gobject.idle_add(worker, (fun, args, kwargs))

    return fun2

browser = ... # read about synchronous_gtk_message below to see what goes here
...
asynchronous_gtk_message(browser.execute_script)('alert("oops")')

# or, alternatively:
async_execute_script = asynchronous_gtk_message(browser.execute_script)
async_execute_script('alert("oops")')

import time
import gobject

def synchronous_gtk_message(fun):

    class NoResult: pass

    def worker((R, function, args, kwargs)):
        R.result = apply(function, args, kwargs)

    # WARNING: I know the busy/sleep polling loop is going to offend
    #          the sensibilities of some people.  I offer the following
    #          justifications:
    #          - Busy/sleep loops are a simple concept: easy to
    #            implement and they work in situations where you
    #            may not have condition variables (like checking your
    #            email with fetchmail).
    #          - If you do use a synchronous message, it will probably
    #            complete very rapidly, thus very few CPU cycles will
    #            by wasted by this busy loop (thanks to the sleep).
    #          - You probably shouldn't be using synchronous messages
    #            very often anyhow.  Async is cooler :-)
    #          - If this code is anything bad, it is probably that the
    #            sleep() adds a bit of undesired latency before the result
    #            can be returned.
    #          If this still doesn't appeal to you, then keep reading
    #          because I do this again with condition variables.
    def fun2(*args, **kwargs):
        class R: pass
        R.result = NoResult
        gobject.idle_add(callable=worker, user_data=(R, fun, args, kwargs))
        while R.result is NoResult:
            time.sleep(0.01)
        return R.result

    return fun2

import time
import gobject

# Slightly more compact version of the above code:
def synchronous_gtk_message(fun):

    class NoResult: pass

    def worker((R, function, args, kwargs)):
        R.result = apply(function, args, kwargs)

    def fun2(*args, **kwargs):
        class R: result = NoResult
        gobject.idle_add(callable=worker, user_data=(R, fun, args, kwargs))
        while R.result is NoResult: time.sleep(0.01)
        return R.result

    return fun2

# non-busy/sleep version of the above code:
def synchronous_gtk_message2(fun):
    import threading

    def worker((R, condition, function, args, kwargs)):
        R.result = apply(function, args, kwargs)
        condition.acquire()
        condition.notify()
        condition.release()

    def fun2(*args, **kwargs):
        condition = threading.Condition()
        condition.acquire()
        class R: pass
        gobject.idle_add(worker, (R, condition, fun, args, kwargs))
        condition.wait()
        condition.release()
        return R.result

    return fun2

# non-working/broken version of the above code :-P
def synchronous_gtk_message3(fun):

    # This doesn't work for me.  Can anyone shed some light on this?
    #
    # Besides, http://library.gnome.org/devel/gdk/unstable/gdk-Threads.html
    # gives a warning that this may only work for X11 but not Win32:
    #
    #     GTK+ is "thread aware" but not thread safe - it provides a global
    #     lock controlled by gdk_threads_enter()/gdk_threads_leave() which
    #     protects all use of GTK+. That is, only one thread can use GTK+
    #     at any given time.
    #
    #     Unfortunately the above holds with the X11 backend only. With the
    #     Win32 backend, GDK calls should not be attempted from multiple
    #     threads at all.
    def fun2(*args, **kwargs):
        gtk.gdk.threads_enter()
        try:     x = apply(fun, args, kwargs)
        finally: gtk.gdk.threads_leave()
        return x

    return fun2

# Use synchronous messages here:
window = synchronous_gtk_message(gtk.Window)()
browser = synchronous_gtk_message(webkit.WebView)()

# Use asynchronous messages here:
asynchronous_gtk_message(window.set_default_size)(800, 600)
asynchronous_gtk_message(window.show_all)()

Message Passing with WebKit

When communicating with WebKit, there will be two types of messages. Unlike with GTK though, these two WebKit messages are both asynchronous:

1. Asynchronous send (web_send / execute_script)

   To send a message from Python to WebKit, we use the "execute_script" method of a WebKit browser widget. There is a wrapper function called "web_send" which will invoke "execute_script".

2. Asynchronous receive (web_recv / title-changed)

   For WebKit to send a message to Python, a hack is required. The WebKit browser features a callback that is triggered whenever the "title" of the embedded web page is changed. We are not using the title for anything better, so why not hijack it and use it for message passing? We can connect the "title-changed" event notification of a WebKit browser to a function which enqueues the title's value into a queue. Then, the main loop can be woken up to check the queue, or it can poll the queue at its own leisure. There is a wrapper function called "web_recv" which interfaces to this queue.

Here is code for launching a browser and definining the web_send and web_recv functions:

import Queue

import gtk
import webkit

def launch_browser(uri, echo=True):
    # WARNING: You should call this function ONLY inside of GTK
    #          (i.e. use synchronous_gtk_message)

    window = gtk.Window()
    box = gtk.VBox(homogeneous=False, spacing=0)
    browser = webkit.WebView()

    window.set_default_size(800, 600)
    # Optional (you'll read about this later in the tutorial):
    window.connect('destroy', Global.set_quit)

    window.add(box)
    box.pack_start(browser, expand=True, fill=True, padding=0)

    window.show_all()

    # Note: All message passing stuff appears between these curly braces:
    # {
    message_queue = Queue.Queue()

    def title_changed(widget, frame, title):
        if title != 'null': message_queue.put(title)

    browser.connect('title-changed', title_changed)

    def web_recv():
        if message_queue.empty():
            return None
        else:
            msg = message_queue.get()
            if echo: print '>>>', msg
            return msg

    def web_send(msg):
        if echo: print '<<<', msg
        asynchronous_gtk_message(browser.execute_script)(msg)
    # }


    browser.open(uri)

    return browser, web_recv, web_send

uri = 'http://www.google.com/'
browser, web_recv, web_send = synchronous_gtk_message(launch_browser)(uri)

Next, somewhere in your HTML/JavaScript, you'll need to define the "send()" function which sends a message to Python by changing the HTML title. Here's an example which I recommend putting in a file named "ipc.js":

function send(msg) {
    document.title = "null";
    document.title = msg;
}

Message Passing with Mozilla (GtkMozEmbed)

The process for GtkMozEmbed is very similar to WebKit, so I recommend that you read the WebKit section. Here, I'm simply going to highlight the differences between WebKit and GtkMozEmbed.

import Queue

import gtk
#import webkit # <- webkit
import gtkmozembed # <- gtkmozembed
import urllib # <- gtkmozembed (for encoding JavaScript strings)

def launch_browser(uri, echo=True):
    # WARNING: You should call this function ONLY inside of GTK
    #          (i.e. use synchronous_gtk_message)

    window = gtk.Window()
    box = gtk.VBox(homogeneous=False, spacing=0)
    #browser = webkit.WebView() # <- webkit (obviously)
    browser = gtkmozembed.MozEmbed() # <- gtkmozembed

    # gtkmozembed only (for webkit, we use its .execute_script()):
    def inject_javascript(script):
        uri = 'javascript:%s' % urllib.quote(script + '\n;void(0);')
        browser.load_url(uri)

    window.set_default_size(800, 600)
    # Optional (you'll read about this later in the tutorial):
    window.connect('destroy', Global.set_quit)

    window.add(box)
    box.pack_start(browser, expand=True, fill=True, padding=0)

    window.show_all()

    # Note: All message passing stuff appears between these curly braces:
    # {
    message_queue = Queue.Queue()

    # webkit:
    #def title_changed(widget, frame, title):
    #    if title != 'null': message_queue.put(title)
    # gtkmozembed:
    def title_changed(*args):
        title = browser.get_title()
        if title != 'null': message_queue.put(title)

    #browser.connect('title-changed', title_changed) # <- webkit
    browser.connect('title', title_changed) # <- gtkmozembed

    def web_recv():
        if message_queue.empty():
            return None
        else:
            msg = message_queue.get()
            if echo: print '>>>', msg
            return msg

    def web_send(msg):
        if echo: print '<<<', msg
        #asynchronous_gtk_message(browser.execute_script)(msg) # <- webkit
        asynchronous_gtk_message(inject_javascript)(msg) # <- gtkmozembed
    # }

    #browser.open(uri) # <- webkit
    browser.load_url(uri) # <- gtkmozembed

    return browser, web_recv, web_send

uri = 'http://www.google.com/'
browser, web_recv, web_send = synchronous_gtk_message(launch_browser)(uri)

...and don't forget about "ipc.js" (described in the WebKit section):

function send(msg) {
    document.title = "null";
    document.title = msg;
}

The Quit Wrapper

When exiting a multithreaded application, you need to be able to instruct all threads to terminate. Additionally, Python has an annoyance associated with signals and threads: you can never know which thread a signal, such as the Ctrl-C/SIGINT, will be sent to.

I solve both of these problems by declaring a shared, global "quit" variable. I then install a SIGINT (Ctrl-C) signal handler which sets the "quit" variable to True if trigerred. It won't matter which thread actually receives SIGINT, because the same global "quit" variable will be set in all cases.

Any process/thread in the program can instruct the program to terminate by setting this global "quit" variable. For example, if the user clicks the File/Quit menu item or pressed Ctrl-Q, the entire program can terminate by setting the "quit" variable.

Without further ado, here's the code:

import signal

class Global(object):
    quit = False
    @classmethod
    def set_quit(cls, *args, **kwargs):
        cls.quit = True

def my_quit_wrapper(fun):
    signal.signal(signal.SIGINT, Global.set_quit)
    def fun2(*args, **kwargs):
        try:
            x = fun(*args, **kwargs) # equivalent to "apply"
        finally:
            asynchronous_gtk_message(gtk.main_quit)()
            Global.set_quit()
        return x
    return fun2

And here's how to use it:

def main():
    while not Global.quit:
        # ... do some stuff ...
        time.sleep(0.1)

if __name__ == '__main__': # <-- this line is optional
    my_quit_wrapper(main)()

Prerequisites

You need to install the following packages:

• PyWebKitGtk or Python GtkMozEmbed
• Python Simplejson

In Debian/Ubuntu, you can follow these steps to install those packages automatically:

apt-get install python-webkitgtk
apt-get install python-simplejson
# ummm... python-gtkmozembed...?

In Gentoo/Funtoo:

#emerge -va pywebkitgtk # <-- not yet working with Python 2.6 :-(
#emerge -va simplejson # <-- installs Python 2.5 :-(
emerge gtkmozembed-python # yay! finally something that works!
easy_install simplejson # this is how we bypass emerge

JavaScript Code

This small JavaScript module will be used to allow sending messages from the browser to Python.

ipc.js:

function send(msg) {
    document.title = "null";
    document.title = msg;
}

HTML Code

The following code uses standard JavaScript (the only uncertainty I have is whether or not "DOMContentLoaded" is a standard, but WebKit certainly supports it regardless). Even though none of the examples here require it, I highly recommend that you use jQuery (unless there is some other JavaScript library that you already like). jQuery allows you to navigate XHTML by using CSS Selectors. jQuery makes it very easy to configure event notifications and to modify the structure of an XHTML document. jQuery also has the ability to work with aggregates: making a single operation apply simultaneously to several XML elements.

demo.xhtml:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html
      PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
      "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:svg="http://www.w3.org/2000/svg"
      xmlns:xlink="http://www.w3.org/1999/xlink">

  <head>

    <title></title>

    <script src="ipc.js" type="text/javascript"></script>

    <!--
    Here are some jQuery plugins that I recommend:

    <script src="js/jquery-1.2.6.min.js" type="text/javascript"></script>
    <script src="js/jquery-plugins/json.js" type="text/javascript"></script>
    <script src="js/jquery-plugins/jquery.hotkeys-0.7.8.js" type="text/javascript"></script>
    <script src="js/jquery-plugins/jquery.intercept.js" type="text/javascript"></script>
    -->

    <link href="demo.css" rel="stylesheet" type="text/css"></link>

    <script type="text/javascript">
// <![CDATA[

// NOTE: jQuery would make this all much cleaner!  You need it!

function got_a_click() {
    // NOTE: send is a JavaScript function that is defined in "ipc.js".
    //       This send function is how messages are sent from HTML
    //       to Python:
    send('"got-a-click"');
}

function document_ready() {
    send('"document-ready"');
    document.getElementById('messages').addEventListener('click', got_a_click, false);
}

document.addEventListener('DOMContentLoaded', document_ready, false);

// If you were using jQuery (with the JSON plugin), you'd write the above
// code like this:
//
// Instead of addEventListener('DOMContentLoaded', ...), do this:
// $(document).ready(function() {
//     // Instead of getElementById('messages').addEventListener('click',...),
//     // do this:
//     // http://docs.jquery.com/Events/bind
//     $('#messages').bind('click', got_a_click);
//     // ...or try this shortcut version of bind:
//     $('#messages').click(got_a_click);
//     // http://jollytoad.googlepages.com/json.js provides $.toJSON(...):
//     send($.toJSON('document.ready'));
// })

// ]]>
</script>


  </head>

  <body>

    <h1>Python + Web GUI Demo</h1>

    <h2>Uptime</h2>

    <p class="uptime">
      Python uptime:
      <span id="uptime-value">?</span> seconds.
    </p>

    <h2>Messages</h2>

    <p id="messages">
      Click here (yes, anywhere here)...<br/>
    </p>

  </body>

</html>

Python Code

The code is split up into two modules: webgui.py and demo.py. These are both shown below:

webgui.py:

import time
import Queue
import thread
import urllib

import gtk
import gobject

try:
    import webkit
    have_webkit = True
except:
    have_webkit = False

try:
    import gtkmozembed
    have_gtkmozembed = True
except:
    have_gtkmozembed = False

class UseWebKit: pass
class UseGtkMozEmbed: pass

if False: pass
elif have_webkit:
    use = UseWebKit
elif have_gtkmozembed:
    use = UseGtkMozEmbed
else:
    raise Exception('Failed to load any of webkit and gtkmozembed modules')

#use = UseGtkMozEmbed # <- choose your desired implementation here

class WebKitMethods(object):

    @staticmethod
    def create_browser():
        return webkit.WebView()

    @staticmethod
    def inject_javascript(browser, script):
        browser.execute_script(script)

    @staticmethod
    def connect_title_changed(browser, callback):
        def callback_wrapper(widget, frame, title): callback(title)
        browser.connect('title-changed', callback_wrapper)

    @staticmethod
    def open_uri(browser, uri):
        browser.open(uri)





class GtkMozEmbedMethods(object):

    @staticmethod
    def create_browser():
        return gtkmozembed.MozEmbed()

    @staticmethod
    def inject_javascript(browser, script):
        uri = 'javascript:%s' % urllib.quote(script + '\n;void(0);')
        browser.load_url(uri)

    @staticmethod
    def connect_title_changed(browser, callback):
        # XXX: probably you should cross your fingers and hope browser
        #      isn't sending title messages too quickly...?
        def callback_wrapper(*args): callback(browser.get_title())
        browser.connect('title', callback_wrapper)

    @staticmethod
    def open_uri(browser, uri):
        browser.load_url(uri)



if use is UseWebKit:
    implementation = WebKitMethods

if use is UseGtkMozEmbed:
    implementation = GtkMozEmbedMethods






def asynchronous_gtk_message(fun):

    def worker((function, args, kwargs)):
        apply(function, args, kwargs)

    def fun2(*args, **kwargs):
        gobject.idle_add(worker, (fun, args, kwargs))

    return fun2


def synchronous_gtk_message(fun):

    class NoResult: pass

    def worker((R, function, args, kwargs)):
        R.result = apply(function, args, kwargs)

    def fun2(*args, **kwargs):
        class R: result = NoResult
        gobject.idle_add(worker, (R, fun, args, kwargs))
        while R.result is NoResult: time.sleep(0.01)
        return R.result

    return fun2

def launch_browser(uri, quit_function=None, echo=True):

    window = gtk.Window()
    browser = implementation.create_browser()

    box = gtk.VBox(homogeneous=False, spacing=0)
    window.add(box)

    if quit_function is not None:
        # Obligatory "File: Quit" menu
        # {
        file_menu = gtk.Menu()
        quit_item = gtk.MenuItem('Quit')
        accel_group = gtk.AccelGroup()
        quit_item.add_accelerator('activate',
                                  accel_group,
                                  ord('Q'),
                                  gtk.gdk.CONTROL_MASK,
                                  gtk.ACCEL_VISIBLE)
        window.add_accel_group(accel_group)
        file_menu.append(quit_item)
        quit_item.connect('activate', quit_function)
        quit_item.show()
        #
        menu_bar = gtk.MenuBar()
        menu_bar.show()
        file_item = gtk.MenuItem('File')
        file_item.show()
        file_item.set_submenu(file_menu)
        menu_bar.append(file_item)
        # }
        box.pack_start(menu_bar, expand=False, fill=True, padding=0)

    if quit_function is not None:
        window.connect('destroy', quit_function)

    box.pack_start(browser, expand=True, fill=True, padding=0)

    window.set_default_size(800, 600)
    window.show_all()

    message_queue = Queue.Queue()

    def title_changed(title):
        if title != 'null': message_queue.put(title)

    implementation.connect_title_changed(browser, title_changed)

    implementation.open_uri(browser, uri)

    def web_recv():
        if message_queue.empty():
            return None
        else:
            msg = message_queue.get()
            if echo: print '>>>', msg
            return msg

    def web_send(msg):
        if echo: print '<<<', msg
        asynchronous_gtk_message(implementation.inject_javascript)(browser, msg)

    return browser, web_recv, web_send


def start_gtk_thread():
    # Start GTK in its own thread:
    gtk.gdk.threads_init()
    thread.start_new_thread(gtk.main, ())

def kill_gtk_thread():
    asynchronous_gtk_message(gtk.main_quit)()

demo.py:

import signal
import os
import time
import urllib

from simplejson import dumps as to_json
from simplejson import loads as from_json

from webgui import start_gtk_thread
from webgui import launch_browser
from webgui import synchronous_gtk_message
from webgui import asynchronous_gtk_message
from webgui import kill_gtk_thread

class Global(object):
    quit = False
    @classmethod
    def set_quit(cls, *args, **kwargs):
        cls.quit = True


def main():
    start_gtk_thread()

    # Create a proper file:// URL pointing to demo.xhtml:
    file = os.path.abspath('demo.xhtml')
    uri = 'file://' + urllib.pathname2url(file)
    browser, web_recv, web_send = \
        synchronous_gtk_message(launch_browser)(uri,
                                                quit_function=Global.set_quit)

    # Finally, here is our personalized main loop, 100% friendly
    # with "select" (although I am not using select here)!:
    last_second = time.time()
    uptime_seconds = 1
    clicks = 0
    while not Global.quit:

        current_time = time.time()
        again = False
        msg = web_recv()
        if msg:
            msg = from_json(msg)
            again = True

        if msg == "got-a-click":
            clicks += 1
            web_send('document.getElementById("messages").innerHTML = %s' %
                     to_json('%d clicks so far' % clicks))
            # If you are using jQuery, you can do this instead:
            # web_send('$("#messages").text(%s)' %
            #          to_json('%d clicks so far' % clicks))

        if current_time - last_second >= 1.0:
            web_send('document.getElementById("uptime-value").innerHTML = %s' %
                     to_json('%d' % uptime_seconds))
            # If you are using jQuery, you can do this instead:
            # web_send('$("#uptime-value").text(%s)'
            #        % to_json('%d' % uptime_seconds))
            uptime_seconds += 1
            last_second += 1.0


        if again: pass
        else:     time.sleep(0.1)


def my_quit_wrapper(fun):
    signal.signal(signal.SIGINT, Global.set_quit)
    def fun2(*args, **kwargs):
        try:
            x = fun(*args, **kwargs) # equivalent to "apply"
        finally:
            kill_gtk_thread()
            Global.set_quit()
        return x
    return fun2


if __name__ == '__main__': # <-- this line is optional
    my_quit_wrapper(main)()

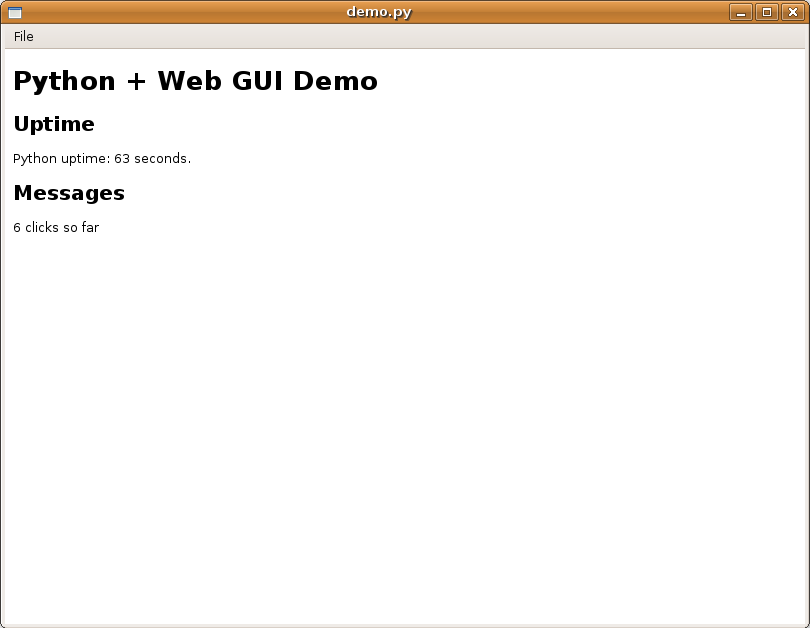

Screenshot
